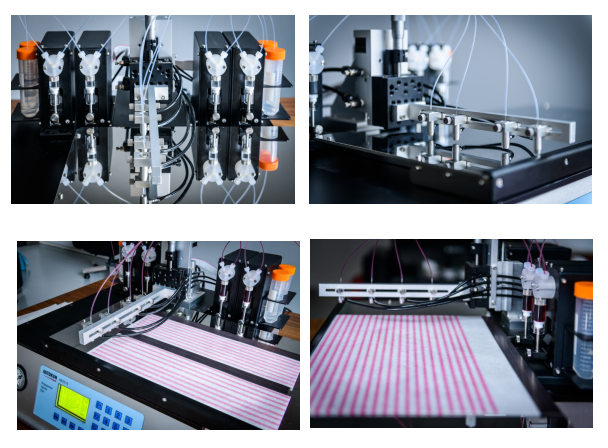

Precious sprayer-big platform with four channels HGS510-1B-4P：

Characteristic:

1. Effective：Four-channel working at the same time, the production capacity is 4-5 times that of a single gold spray machine

2.Simulation function: simulate gold spraying operation without liquid, and judge the position of gold spraying

3.Memory and cycle function: each time the spraying is completed, it will return to the last set starting position, and the film can be drawn continuously according to the preset number and time

4.One-button emptying: With one-button emptying function, it can easily recover the remaining solution

5.Micro suction: the quantitative suction solution can be blocked by the micro air column of the scratching head, and only 1ul can be used . It is especially suitable for the early 20ul, 50ul research and development work, which greatly reduces the sample cost and improves the research and development efficiency.

6.Large platform operation: operating range 275*500mm, platform size 250*350mm, can put down a piece of A4 paper, suitable for mass production enterprises

Parameter:

Power：90-250VAC 50/60HZ   2A

Weight：40KG

Size：470(L)×380(W)×395(H) mm

Air supply:   0-100psi

Accuracy：±0.1%

Precision：0.01ul

Position precision：±0.1mm

Operation size:   250 x 350 mm

Platform speed:   0-99mm/s

Spray volume: 0.2-99ul/cm
