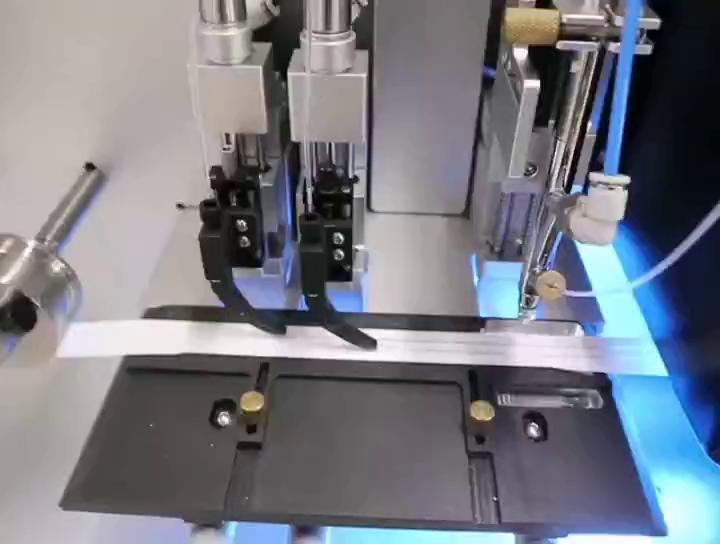

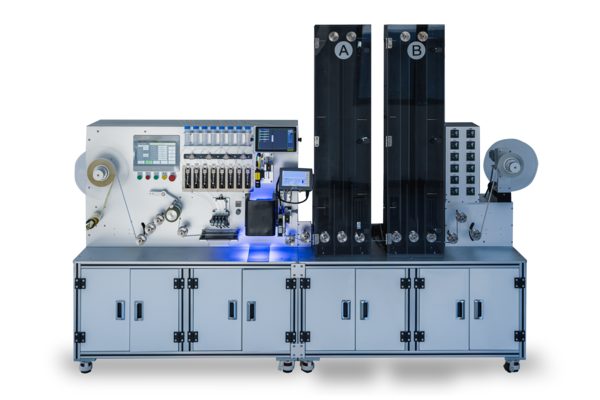

The machine can dispense reagents on the NC membrane surface automatically. Max four lines.Automatically mark scrap and receive NC membrane into roll.

Characteristics :

- High efficiency:

- Automatically mark defective products

- High Precision

- Specific dispense tip design, PEEK tube in touch, suitable to dispense line on membrane

- auto dry

- adjustable temperature

Specification:

Power： 220VAC 50HZ

Size： 2510(L)×540(W)×1944(H)mm

Power: 6KW

Air supply:≤0.1MPa

Precision:±0.1mm

Volume:0.1-10ul/cm

Speed:40-60mm/s

Temp:0-65℃

Temp control range:≤3℃

Lines:max 4 lines
