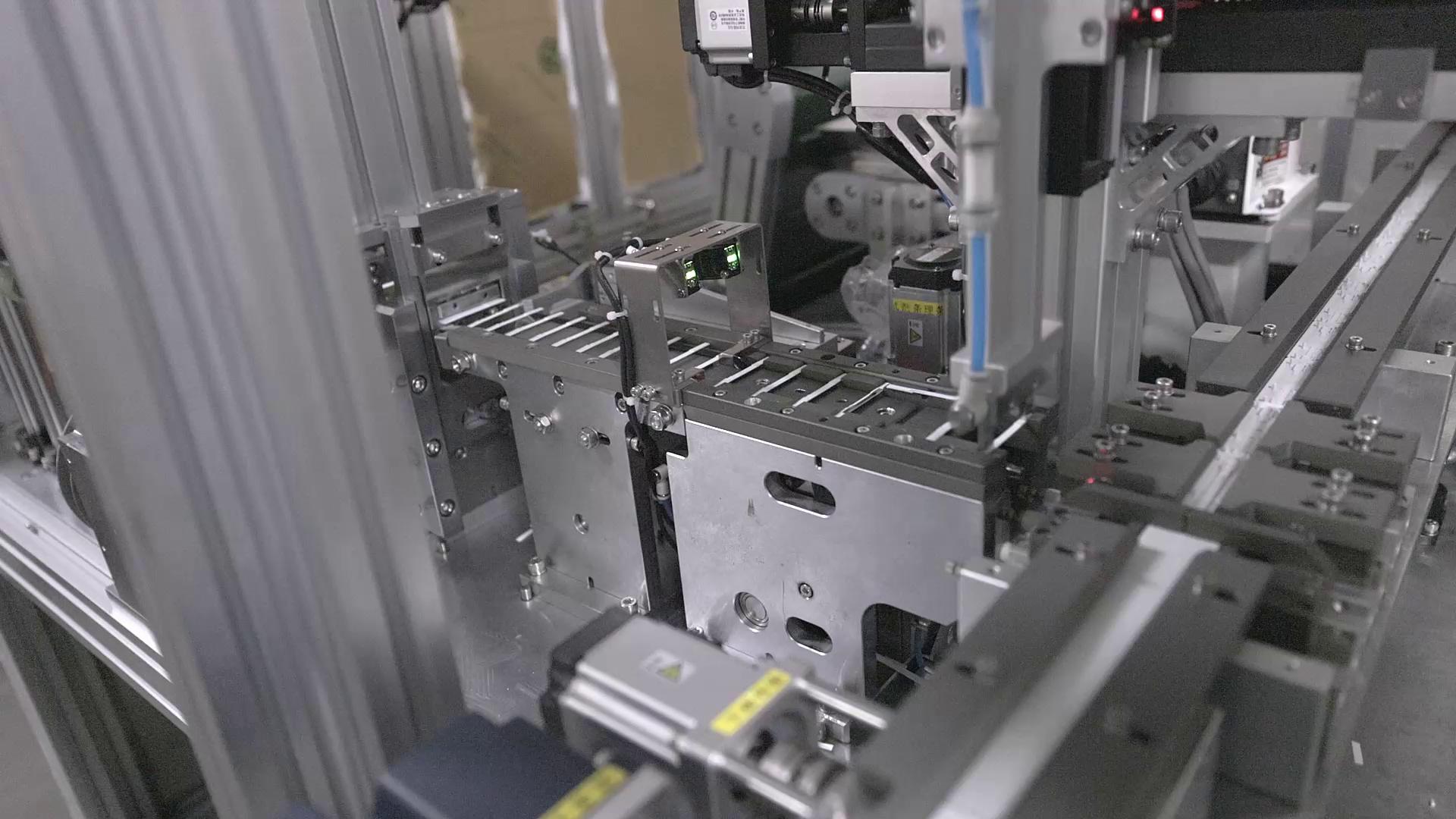

Automatic cutting and packing machine

Model:HGS3003
Size:customized
Weight:1000kg
Function:automatic put cassettes,desiccant into foil bag and sealed
Precision:99%
Product detail

Function:

1.Automatically supply the lower shells

2.Automatically supply the backplane

3.Automatically detect the direction of the lower shells and adjust accordingly

4.Automatically detect the bad marks on backplanes and remove them

5.Automatically cutting the strips and put them into the shells

6.Automatically supply the upper shells

7.Automatically detect the direction of the upper shells and adjust accordingly

8.Automatically detect whether there is a test strip installed in shell

9.Automatically attach the upper shell and   press

10.Automatic delivering test strips to the bagging system

11.Automatically supply the drier

12.Automatically supply the foil bag

13.Automatically supply the dropper

14.Automatically put the drier, dropper and test strips into the bag

15.Automatically sealing

16.Automatically discharge and count

17..Automatically discharge separately according to numbers

1.Automatically supply the drier
2.Automatically supply the foil bag
3.Automatically supply the dropper
4.Automatically put the drier, dropper and test strips into the bag
5.Automatically sealing
6.Automatically discharge and count
7..Automatically discharge separately according to numbers
Elements standard
Track partHard chromium plating on 45 steel surface or Aluminum alloy anodizing and sandblasting
Important part:Vacuum Heat-treatment SKD11 or SKH9 or Tungsten steel
Pneumatic part: Airtac and SMC
PLCOmron
Standard part:MISUMI or HIWIN
Technical data:
1.Model typeFully enclosed
2.Control and screenPLC control and touch screen
3.Capacitymore than 2000/hour
4.Activation95%
5.Rejection rate:<0.3%
6. Bad strips detection rate100%
7.Cutting precision±0.05mm
8.OperatorOne person
Material requirement
Please provide the correct samples and more than 5000 sets material for testing
